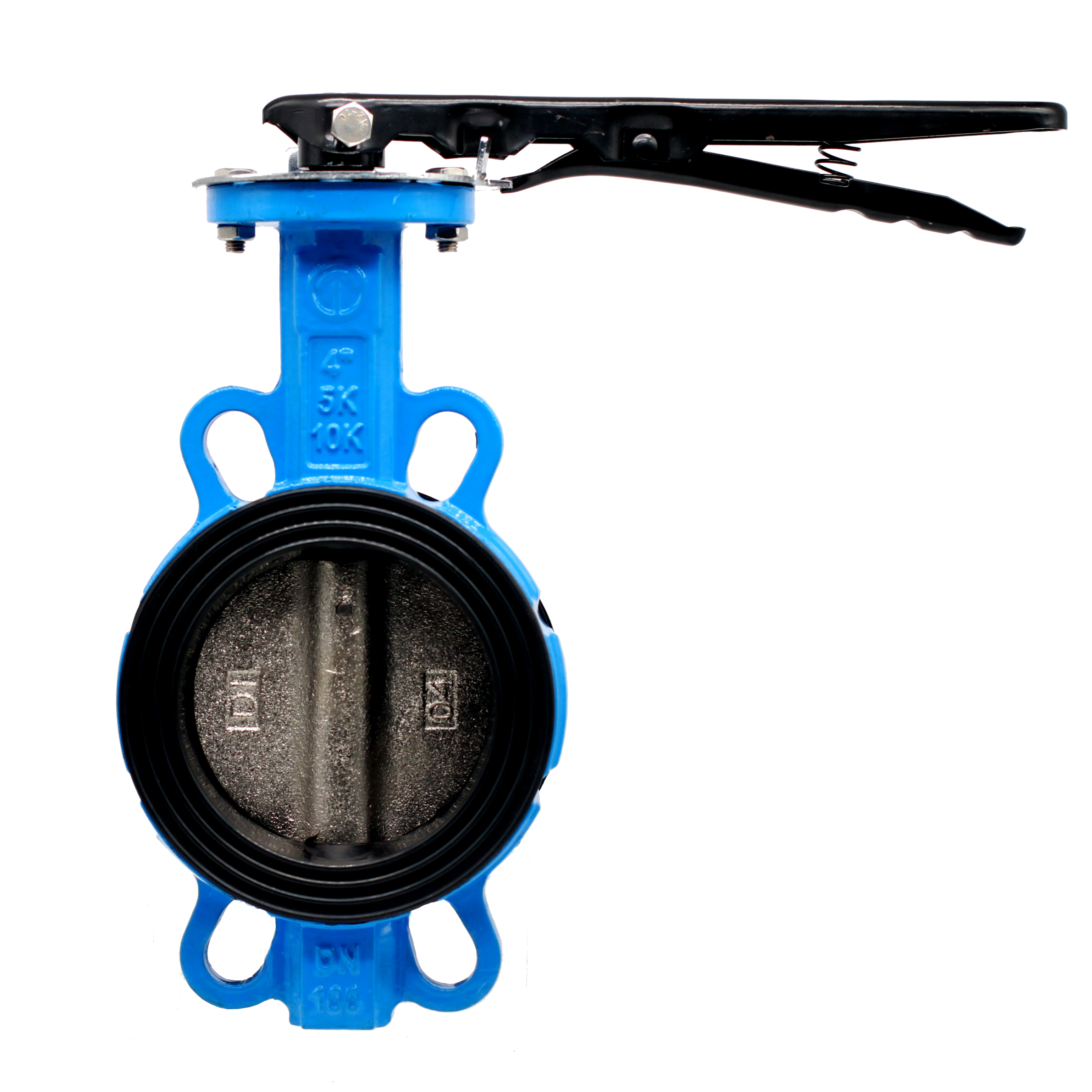

手柄對夾蝶閥
手柄對夾蝶閥
產品詳情

用途

Purpose

該閥廣泛用于建筑、化工、醫藥、輕紡、船舶及其它行業的各種給排水管路上,作為截斷和調節設備使用。

This valve is used as a cutoff and adjustment equipment on various water supply and drain-out pipelines for construction, chemipharmacy, light and textile and other trades.



特點

Characteristics

1、雙向密封無介質流向要求,安裝空間小;2、不銹鋼蝶板耐腐蝕;

3、可脫卸式橡膠膠套,密封可靠,方便更換;

4、帶開度指示的刻度盤,顯示閥瓣開關位置,實現調流功能。

1.Dual-way sealing, without requiring the medium flowing direction, in a small installation space;2.Stainless steell made butterfly plate, corrosion-proof;

3.Removable rubber sleeve,reliably sealed and easily replaceable;

4.The scale with graduation indication shows the open-close position of the disc, realizing the flow adjustment.



執行標準

Execution standard

設計制造標準Design and manufacturing standards: GB/T12238-2008法蘭連接尺寸Flange connection size: GB 2555

試驗標準Test standard: GB/T 13927

連接方式Connection type:對夾wafer


性能規范

Performance specification

公稱壓力Nominal pressure:PN10PN16公稱通徑Nominal diameter: DN50~60omm適用溫度Applicable temperature:100c

適用介質Applicable medium:水、氣、油Water, gas, oil



主要零件材料

Main parts materials

閥軸—不銹鋼

Valve shaft-Stainless steel

蝶板━球墨鑄鐵鍍鉻/不銹鋼

Butterfly plateDuctile iron chrome platingystainless steel

閥體—球墨鑄鐵/鑄鋼

BodyDuctile iron/cast steel

閥體內襯—丁睛橡膠/三元乙丙

Body liningNBR/EPDM

手柄一鋁合金

HandleAluminum alloy
